Technology
Our ethos of true innovation — Anabolic Mechanics prides itself with challenging the status quo by demanding and delivering true innovation in the maker world.
Image source: ratrig.com
Looks familiar - Operates Anabolically
Twin Engine Approach
TRUE dual simultaneous printing is what we like to call Twin-Engine printing. The change: two independent heads collaborate on the same part at the same time.
Categorical Layer Heights
DualCore T-IDEX prints visible surfaces at 0.20 mm for a clean finish, while it prints infill at 0.40 mm to chew through the hidden volume faster.
Keeping the look; losing the wait.
Each of these methodologies propel the speed of printing and putting them together exponentially speeds up the entire process.

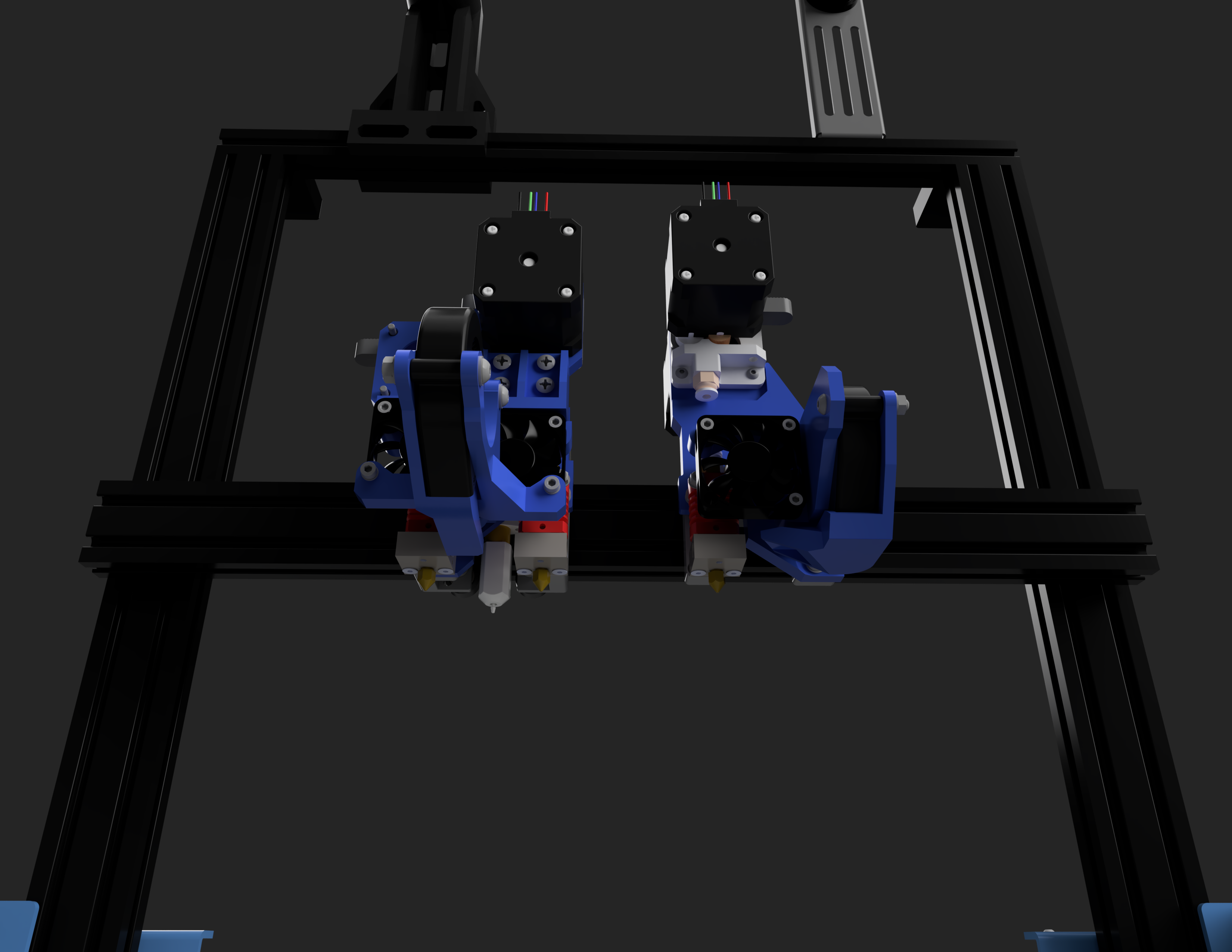

Twin-Engine System
Independent dual heads for maximum efficiency
Two print heads operate independently on the same part simultaneously, dramatically reducing print times while maintaining precision.
Variable Layer Heights
Smart layer optimization per region
Fine layers on visible surfaces, thick layers on infill. Optimize speed without sacrificing aesthetics.
Multi-Material Printing
Wide range of filament support
PLA, ABS, PETG, TPU, and engineering-grade filaments. Advanced thermal management ensures consistent results.
Precision Control
Exceptional accuracy at high speeds
Layer resolutions down to 50 microns. Real-time monitoring ensures consistent quality across every print.
Technical Specifications
Build Volume Options
300³ / 400³ / 500³ mm
Configurable frame sizes
Frame Material
Extruded aluminium
Structural frame
Motion Architecture
CoreXY + IDEX
Independent dual X gantry
Print Speed
1850 mm/s
Maximum
Hotend Temperature
Up to 300°C
High-temp ready
Bed Temperature
Up to 120°C
AC heated
Connectivity
USB, Ethernet, Wi-Fi
Multi-interface
Print Surface
Double-sided PEI
410 × 410 mm
